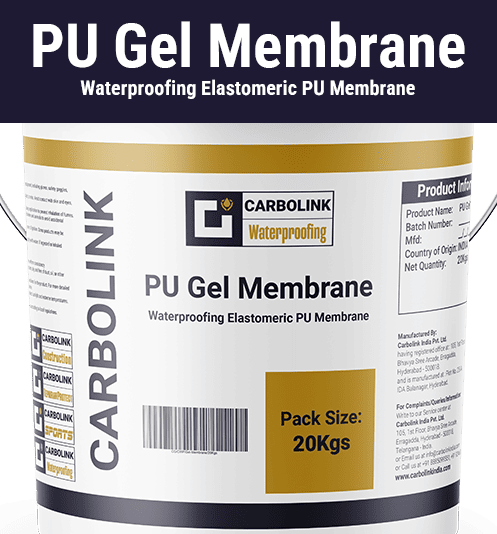

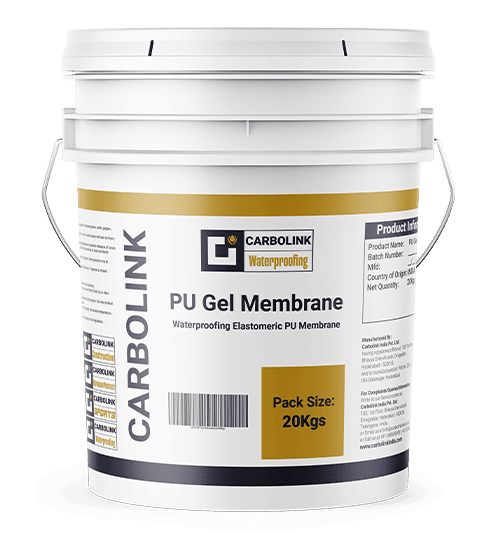

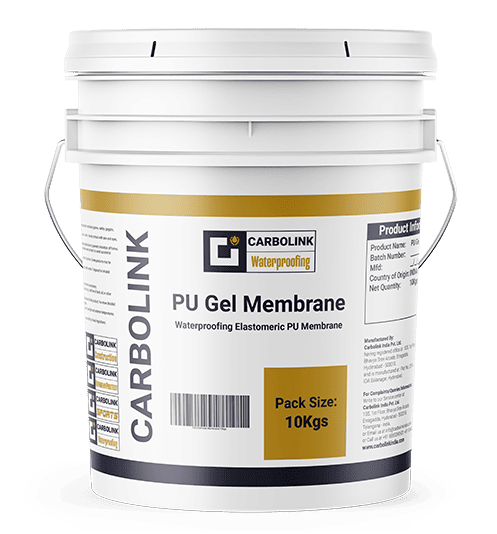

PU Gel Membrane

Waterproofing Elastomeric PU Membrane

PU Gel Membrane is a tough, UV stable, flexible liquid applied waterproof facade coating with high solar reflectance providing excellent heat insulation and energy efficiency. It can be applied at a DFT of 0.3 mm as an aesthetically attractive textured or semi-smooth finish and is available in a range of standard colours.

Features

Flexible: accommodates normal building movement. Reflects the intense solar heat with an Solar Reflectance Index (SRI) of 103. Provides excellent UV resistance and long-term protection from elements of nature.
Water-based: safe to use and low odour. Breathable. Cost-effective, with longterm savings and short payback period. Naturally fungi retardant.
Decorative: can be applied in different textures.

Application

Substrate Preparation
Surface must be clean, sound and properly cured. Remove all loose materials mechanically, preferably with a wire brush. Iron and steel surfaces should be free of rust.

Characteristics of Cured Membrane

#	Characteristic	Value
1	Tensile Strength	> 3.0 MPa
2	Elongation at Break
3	Solar Reflectance Index ASTM E 1980-11	>100%*
4	Emissivity	>0.9*
5	Solar Direct Reflectance	>0.8*
6	Overcoat Time	4hrs @ 23°C, 50% RH
7	Dry Through (2nd Coat)	24hrs @ 23°C, 50% RH
8	Application Temperature	10°C – 35°C (surface temp)
9	Service Temperature	0°C – 60°C
10	VOC	Low
11	Water Absorption	< 25% after 72 hours
