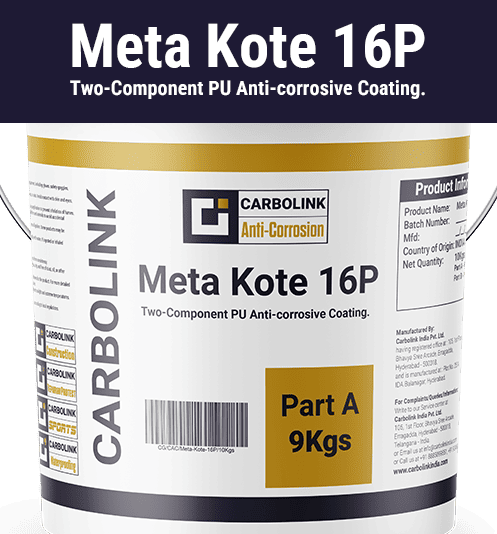

Meta Kote 16P

Uses

Meta Kote 16P is recommended as a protective coating against aggressive atmospheres on substrates such as concrete, rendering, stone, asbestos cement, steel, and iron.

Characteristics/Advantages

Corrosion resistant, resistant to saline environments, good chemical resistance, weatherproof, UV resistant, color stable and nonyellowing, easy to apply, glossy finish, low dirt pick up.Meta Kote 16P is recommended for usage as a protective coating on structures such as: Cooling towers, bridges and flyovers in marine locations, chimneys, wastewater treatment plants, chemical manufacturing plants, metal structures in marine areas.

Characteristics

#	Characteristic	Value
1	Appearance/Color (Part A + B mixed)	Glossy colored liquid Part A: Colored liquid Part B: Colored liquid Available in various RAL shades
2	Shelf Life	12 months from the date of production
3	Storage Conditions	Store properly in undamaged and unopened original sealed packaging in cool and dry conditions. Protect from direct sunlight and frost
4	Drying Time	Surface Dry – 25 minutes, Hard Dry – 60 minutes
5	Adhesion to Concrete	Surface failure
6	Mixing Ratio	As specified on the container
7	Theoretical Coverage	3 m²/L on a properly cleaned surface
8	Coating Interval	Minimum 50 minutes, Maximum 24 hours
9	Finish	Glossy to bright matte
10	Hardness (Shore A)	> 90
11	Adhesion to Steel	Excellent

Technical Information

#	Characteristic	Value
1	Tensile Adhesion Strength:	≥1.5 N/mm² on concrete substrate
2	Resistance to UV Exposure:	Excellent, no discoloration
3	Behavior after Artificial Weathering:	No sign of chalking, checking, spotting, flaking, blooming, or corrosion when tested for 1440 hours

Application Information

#	Characteristic	Value
1	Mixing Ratio	Part A B = 9:1 (By weight)
2	Consumption	~0.15 kg per m² per coat depending on the porosity of the substrate
3	Layer Thickness	~150 microns in 2 coats
4	Ambient Air Temperature	+10°C min / +40°C max
5	Relative Air Humidity	70% max
6	Dew Point	Beware of condensation; the substrate must be at least 3°C above the dew point
7	Substrate Temperature	+10°C min / +40°C max
8	Substrate Moisture Content	≤4% as measured with a Tramex CME/CMExpert type concrete moisture meter
9	Pot Life	10-15 minutes at +30°C
10	Waiting Time/Overcoating	6 hours at +30°C & relative humidity 75%
11	Dry Time	Touch dry ~24 hours, Full cure ~7 days

Application Instructions

Substrate Quality/Pre-Treatment
Concrete Substrates: The substrate must be dry and clean from any dust or laitance. Roughen the surface with sandpaper or wire brush, then clean the surface properly before applying the coating. Water cleaning is not permissible. Use a concrete pore-filling system such as EP 21 P before application of Meta Kote 16P. For old concrete substrates, use a primer coat as recommended. For damp substrates or whenever moisture ingress is expected, use AT 107 as a moisture barrier.
Metal Substrates:

The substrate must be dry and clean from any rust or existing coatings. Roughen the surface with sandpaper or wire brush, then clean the surface properly before applying the coating. For existing metal substrates, use a primer coat as recommended.
Mixing

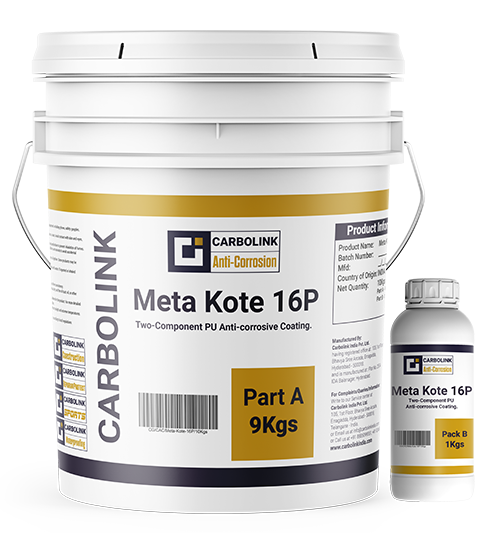

Meta Kote 16P is supplied in two parts. Mix parts A & B for 3 minutes with a low-speed (250-300 rpm) mechanical stirrer. Mix until the material becomes homogeneous without generating air bubbles.
Application
After mixing, apply by roller or brush on the prepared surface in 1 or 2 coats as per the system. Before application, clean the roller or brush from loose fibers by rolling on adhesive tape.
