Features
EP 21 G is a high-performance, moisture-insensitive, free-flowing epoxy resin grout designed for heavy-duty applications. It offers excellent adhesion to both cement and metal substrates and is particularly suitable for grouting bridge bearing plates, machine bases, fixing bolts and anchors, and vertically placed dowel bars, even under dynamic loading conditions.
Characteristics / Advantages
EP 21 G provides several beneficial properties, including high early strength, shrinkage-free curing, and excellent adhesion to various substrates. It is easy to apply, even in challenging conditions, and its free-flowing nature ensures that it fills voids and gaps effectively.
Product Information
| # | Characteristic | Value |
|---|---|---|
| 1 | Chemical Base | Epoxy resin |
| 2 | Packaging | 21 kg (A+B+C) |
| 3 | Colour | Cement grey, flowable mortar |
| 4 | Shelf Life | 12 months from the date of production |
| 5 | Storage Conditions | Store in original, unopened, and undamaged packaging in dry conditions at temperatures between +5°C and +40°C. Protect from direct sunlight. |
| 6 | Density | Mixed Density: 1.9 kg/l at 27°C |
Technical Data
| # | Characteristic | Value |
|---|---|---|
| 1 | Compressive Strength (According to FIP 5.12 and IS 9162-1979) | 1 day: 45 N/mm² 7 days: >60 N/mm² (Product cured and tested at the specified temperature; Test specimen size: 50 x 50 x 50 mm) |
| 2 | Tensile Adhesion Strength | >10 N/mm² (Bond Strength to concrete in 14 days) (According to ASTM C882) |
| 3 | Mixing Ratio | Part A : Part B : Part C = 2 : 1 : 8 (by weight) |
| 4 | Layer Thickness | 50 mm (maximum) |
| 5 | Product Temperature | EP 21 G Grout must be applied at temperatures between +10°C and +40°C. Condition the material by storing it at this temperature for 48 hours before use |
| 6 | Ambient Air Temperature | +10°C min. / +40°C max. |
| 7 | Dew Point | The substrate temperature during application must be at least 3°C above the dew point to avoid condensation. |
| 8 | Substrate Temperature | +10°C min. / +40°C max. |
| 9 | Bond Strength to Concrete (ASTM D4541) | 7 Days: >2.0 N/mm² |
| 10 | Pot Life | ~20 minutes at +30°C for 100g mass (According to FIP 5.1) |
Physical Properties
| # | Characteristic | Value |
|---|---|---|
| 1 | Pot Life | ~20 minutes at +30°C for 100g mass |
| 2 | Mixed Density | 1.9 kg/l at 27°C |
| 3 | Compressive Strength (BS 6319-Part-2) | 8 Hours: >40 N/mm² 1 Day: >55 N/mm² 7 Days: >75 N/mm² |

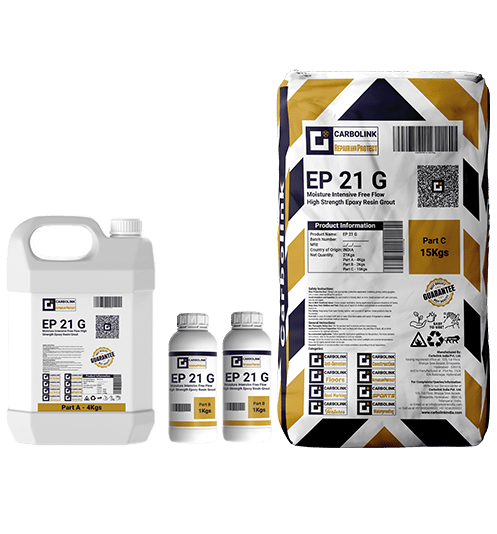

| 4 | Packaging EP 21 G is available in 21 kg packs | Part A: 2 kg Part B: 1 kg Part C: 8 kg |
