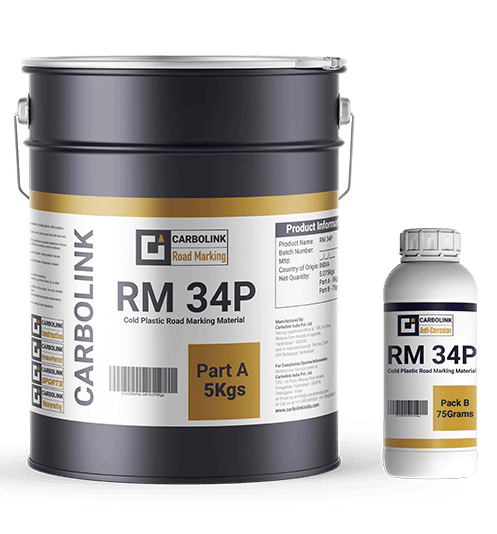

RM 34P

Application Guidelines Surface Preparation

• Ensure the surface is clean, dry, and free from oil, grease, dust, and contaminants.
• For best adhesion, the surface should be mechanically cleaned or pressure washed before application.

Mixing Instructions

• Thoroughly mix the Base Component with the Curing Agent in the specified ratio (100:1.5 by weight).
• Mix for at least 2-3 minutes until a homogeneous blend is achieved.
• Use immediately after mixing to prevent premature curing.

Application Process

• Apply using a spray machine, roller, or brush, depending on project requirements.
• Ensure uniform coverage by applying an even coat across the designated area.
• For enhanced reflectivity, sprinkle glass beads onto the wet coating immediately after application.
• Apply multiple coats if required, allowing each coat to set before reapplying.

Curing Time

• Allow 15 – 30 minutes for curing before opening the area to traffic.
• Full curing may depend on ambient temperature and humidity levels.

Storage and Handling

• Wear personal protective equipment (PPE), including gloves, safety glasses, and respiratory masks, while handling the product.
• Ensure proper ventilation in the application area to avoid inhalation of fumes.
• Avoid skin and eye contact. In case of contact, rinse immediately with plenty of water and seek medical attention if irritation persists.
• Do not ingest. If swallowed, seek immediate medical attention and do not induce vomiting.

Physical Properties

#	Characteristic	Value
1	Appearance	Smooth, pigmented viscous liquid
2	Specific Gravity	1.50 – 1.70 (varies with pigments/fillers)
3	Viscosity	3000 – 4000 cPs at 25°C
4	Mixing Ratio	Base: Hardener = 100:1.5
5	Flow Resistance, %	<25
6	Pot Life	8 – 12 minutes at 25°C
7	Curing Time	15 – 30 minutes at 25°C
8	Dry Film Thickness	1 – 3 mm (depending on application)
9	Reflectivity	> 80 mcd/m²/lux (with glass beads)
10	Skid Resistance	≥ 45 BPN (British Pendulum Number)
11	Shelf Life	One year (extendable upon inspection and validation)

Performance Characteristics

#	Characteristic	Value
1	Weather Resistance	Excellent resistance to UV, rain, and temperature variations.
2	Abrasion Resistance	Highly resistant to wear and tear.
3	Chemical Resistance	Resistant to oils, fuels, and industrial chemicals.
4	Adhesion to Substrate	Excellent bonding on asphalt and concrete.
5	Reflectivity	Enhanced when used with glass beads for night-time visibility.

Data Reliability

All technical data provided in this document are based on laboratory tests. Actual performance may vary due to factors beyond our control.

Regional Compliance

Product specifications may vary based on local regulations. Please refer to the local Product Data Sheet for precise information.

Legal Disclaimer

The information and recommendations regarding the application and end-use of Carbolink products are provided in good faith based on our current knowledge and experience. Due to variations in materials, substrates, and actual site conditions, no warranty of merchantability or fitness for a specific purpose can be inferred. The user must determine the product's suitability for the intended application. Carbolink reserves the right to change the properties of its products. All proprietary rights of third parties must be observed. Orders are subject to our current terms of sale and delivery. Always refer to the most recent local Product Data Sheet, available upon request.

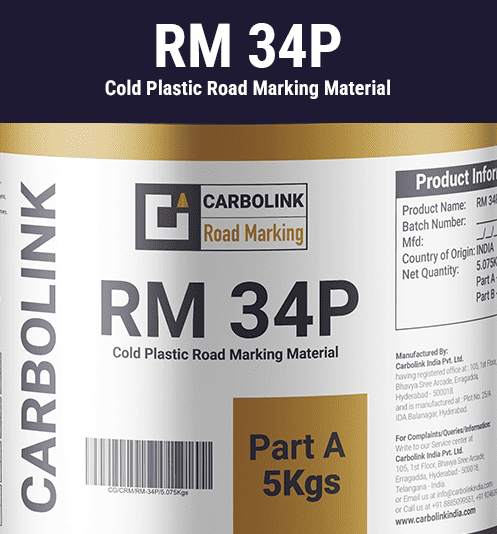

Cold Plastic Road Marking Material

5.075Kgs

2 – 3 m²/kg (varies with thickness)

Highways, Airports, Urban Roads, Industrial Areas
