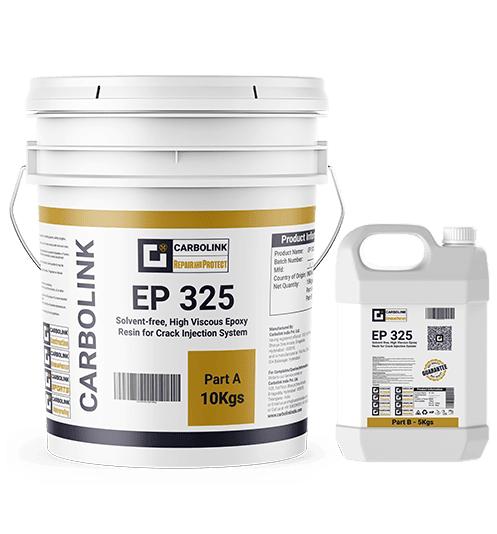

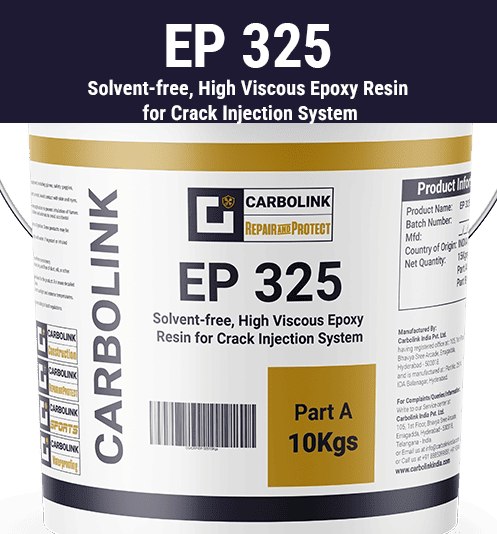

EP 325

Solvent-free, High Viscous Epoxy Resin for Crack Injection System

EP 325 is a two-component, moisture-insensitive, epoxy resin-based crack injection system designed for sealing cracks in concrete and restoring structural integrity. It is particularly effective for grouting cracks ranging from 0.5 mm to 10 mm in width, cold joints, and other similar defects in concrete structures.

Available Pack Sizes

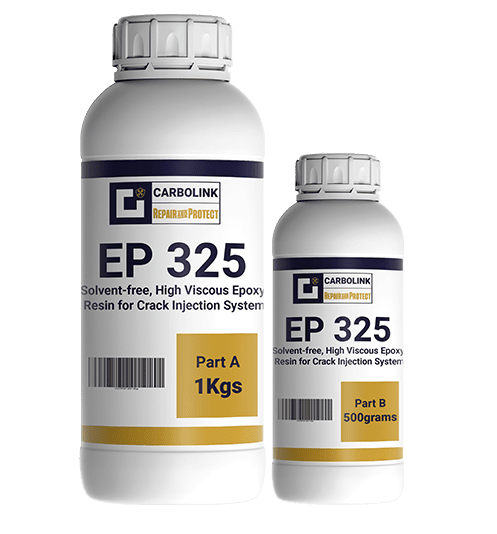

15Kgs & 1.5Kgs

Coverage

Coverage varies depending on the substrate, crack width, porosity, and application method.

Application Areas

-

Features

EP 325 offers excellent bond strength, ensuring the restoration of structural integrity. Its high elastic modulus allows for effective stress transfer at the bond interface. The product is moisture-insensitive, making it versatile for various applications, and it provides resistance to a wide range of chemicals and liquids. Pre-proportioned components ensure consistent performance during application.

Substrate Preparation

The surface to be treated with EP 325 must be hard, sound, and free from dust, paint, lime coatings, plaster, curing agents, laitance, adhesive residues, and other materials that may inhibit adhesion. The area should be prepared by drilling appropriate holes and fixing injection packers or nipples. The holes must be free of debris and laitance before fixing the packers. Ensure that the entire length of the crack is sealed using a suitable adhesive.

Application

EP 325 should be injected into cracks and joints using a high-pressure, airless double diaphragm pump or a two-component piston pump designed for epoxy injection. Begin by injecting the mixed material into each port or nipple, ensuring that all other ports remain closed. When the resin starts to emerge from the next port, close it and continue the injection process. Repeat this until all ports are filled. After 24 hours, remove all the nipples or ports and fill the resulting cavities with a suitable epoxy adhesive.

Physical Properties
# Characteristic Value
1 Appearance Pale yellow liquid
2 Mixed Density 1.1 kg/litre
3 Viscosity 1000±100 cps
4 Pot Life 45 minutes
5 Application Limits 0.5 mm - 10 mm
6 Tack-Free Time 6 days
7 Full Chemical Cure 7 days
8 Compressive Strength (ASTM C579) 24 Hours: >60 N/mm²
7 Days: >70 N/mm²
9 Bond Strength to Concrete (ASTM D4541) 7 Days: >2.0 N/mm²
10 Packaging EP 325 is available in 5 kg packs. Part A: 2 kg
Part B: 1 kg
Data Reliability

All technical data provided in this document are based on laboratory tests. Actual performance may vary due to factors beyond our control.

Regional Compliance

Product specifications may vary based on local regulations. Please refer to the local Product Data Sheet for precise information.

Legal Disclaimer

The information and recommendations regarding the application and end-use of Carbolink products are provided in good faith based on our current knowledge and experience. Due to variations in materials, substrates, and actual site conditions, no warranty of merchantability or fitness for a specific purpose can be inferred. The user must determine the product's suitability for the intended application. Carbolink reserves the right to change the properties of its products. All proprietary rights of third parties must be observed. Orders are subject to our current terms of sale and delivery. Always refer to the most recent local Product Data Sheet, available upon request.
