EP 21 G

Features

EP 21 G is a high-performance, moisture-insensitive, free-flowing epoxy resin grout designed for heavy-duty applications. It offers excellent adhesion to both cement and metal substrates and is particularly suitable for grouting bridge bearing plates, machine bases, fixing bolts and anchors, and vertically placed dowel bars, even under dynamic loading conditions.

Characteristics / Advantages

EP 21 G provides several beneficial properties, including high early strength, shrinkage-free curing, and excellent adhesion to various substrates. It is easy to apply, even in challenging conditions, and its free-flowing nature ensures that it fills voids and gaps effectively.

Product Information

#	Characteristic	Value
1	Chemical Base	Epoxy resin
2	Packaging	21 kg (A+B+C)
3	Colour	Cement grey, flowable mortar
4	Shelf Life	12 months from the date of production
5	Storage Conditions	Store in original, unopened, and undamaged packaging in dry conditions at temperatures between +5°C and +40°C. Protect from direct sunlight.
6	Density	Mixed Density: 1.9 kg/l at 27°C

Technical Data

#	Characteristic	Value
1	Compressive Strength (According to FIP 5.12 and IS 9162-1979)	1 day: 45 N/mm² 7 days: >60 N/mm² (Product cured and tested at the specified temperature; Test specimen size: 50 x 50 x 50 mm)
2	Tensile Adhesion Strength	>10 N/mm² (Bond Strength to concrete in 14 days) (According to ASTM C882)
3	Mixing Ratio	Part A : Part B : Part C = 2 : 1 : 8 (by weight)
4	Layer Thickness	50 mm (maximum)
5	Product Temperature	EP 21 G Grout must be applied at temperatures between +10°C and +40°C. Condition the material by storing it at this temperature for 48 hours before use
6	Ambient Air Temperature	+10°C min. / +40°C max.
7	Dew Point	The substrate temperature during application must be at least 3°C above the dew point to avoid condensation.
8	Substrate Temperature	+10°C min. / +40°C max.
9	Bond Strength to Concrete (ASTM D4541)	7 Days: >2.0 N/mm²
10	Pot Life	~20 minutes at +30°C for 100g mass (According to FIP 5.1)

Physical Properties

#	Characteristic	Value
1	Pot Life	~20 minutes at +30°C for 100g mass
2	Mixed Density	1.9 kg/l at 27°C
3	Compressive Strength (BS 6319-Part-2)	8 Hours: >40 N/mm² 1 Day: >55 N/mm² 7 Days: >75 N/mm²

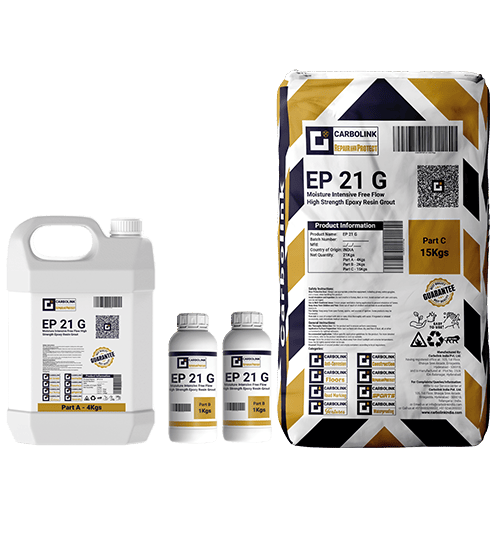

4	Packaging EP 21 G is available in 21 kg packs	Part A: 2 kg Part B: 1 kg Part C: 8 kg

Data Reliability

All technical data provided in this document are based on laboratory tests. Actual performance may vary due to factors beyond our control.

Regional Compliance

Product specifications may vary based on local regulations. Please refer to the local Product Data Sheet for precise information.

Legal Disclaimer

The information and recommendations regarding the application and end-use of Carbolink products are provided in good faith based on our current knowledge and experience. Due to variations in materials, substrates, and actual site conditions, no warranty of merchantability or fitness for a specific purpose can be inferred. The user must determine the product's suitability for the intended application. Carbolink reserves the right to change the properties of its products. All proprietary rights of third parties must be observed. Orders are subject to our current terms of sale and delivery. Always refer to the most recent local Product Data Sheet, available upon request.
